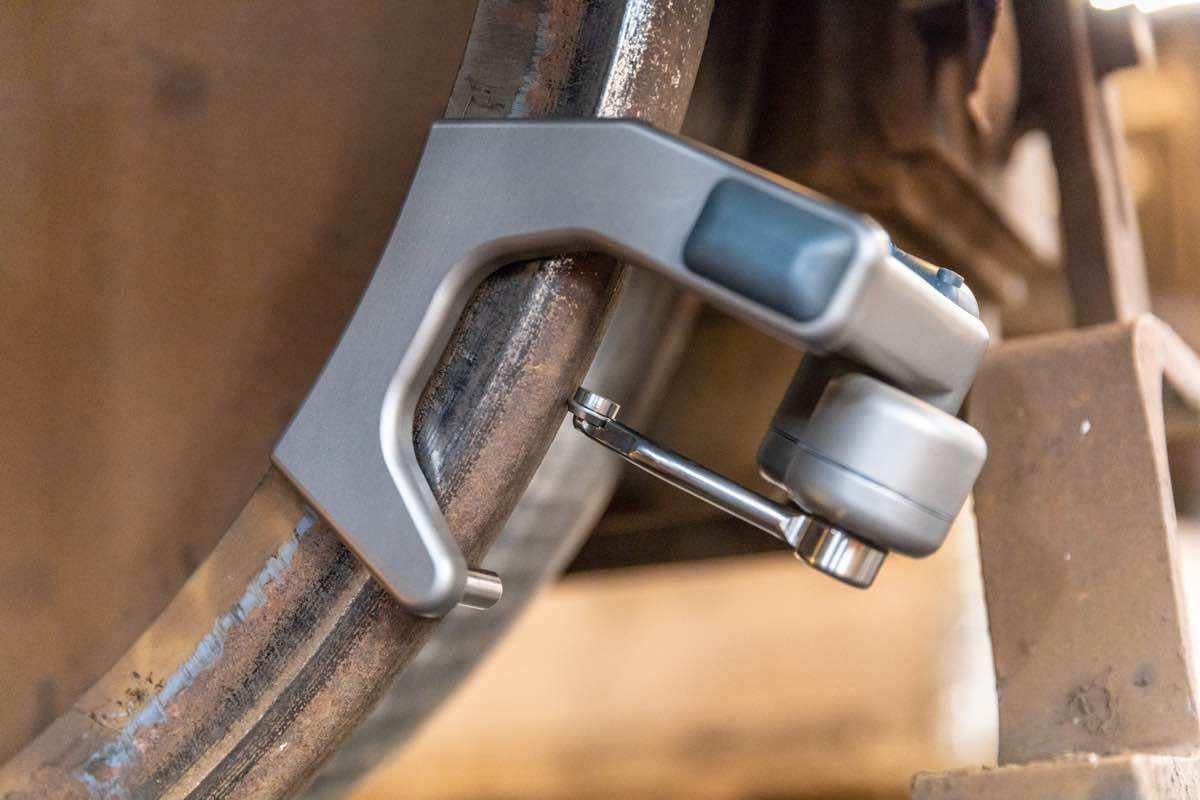

MiniProf BT Wheel is a high precision, lightweight and portable tool for performing fast and reliable cross-sectional wheel profile measurements to monitor and analyze the wear of wheels. It is equipped with Bluetooth®, has an option for cable connection and comes in few variations depending on your requirements. Magnetically attached to the backside of the wheel, the wheel profile is measured in less than 5 seconds and a complete railroad car in less than five minutes.
获得即时结果
Wear parameters such as Sd, Sh and qR values are displayed instantly after each measurement in real time view. Numerous additional calculations and alignments are included in the powerful Envision software for basic to advanced data handling, analyzing and reporting
车轮分析&计算
The MiniProf Envision software visualises and calculates residuals and areas automatically.
测量文件能通过多种不同的方式进行比较，轻松地输出到各种格式。
镟轮
MiniProf蓝牙车轮外形测量仪是镟轮前后检查车轮外形的理想工具，能判断何时进行镟修以及镟修时应切削掉多少材料。MiniProf无与伦比的高精度测量能辅助精准镟修，提高轮对的寿命。
快速测量方案
MiniProf Envision软件的测量方案系统是一个功能强大的工具，通过预设置清晰的识别信息，在测量时进一步简化和减少环节。
Profile measurements – from tram vehicles to locomotives
MiniProf Wheel Mini is the smallest member of the MiniProf Wheel family. With its compact and lightweight design, it is a versatile tool for measuring most types of wheels from compact tram wheels to locomotive wheels.
With only a small 100 mm backplate, it fits right in the palm of your hand and can be used even if only limited measuring space is available. It is fast and easy to operate and provides the same excellent profile accuracy and reliability as always.
Profile and back-to-back in a single measurement
The MiniProf Wheel Back-to-Back system measures both the wheel profile and back-to-back distance of the wheelset in a single, quick measurement. Magnetically attached between the backsides of the wheels and connected by a solid rod, it can be applied directly under rolling stock or on standalone wheelsets.
Combined profile and diameter measurement
The MiniProf Wheel 400 is equipped with a wide 400 mm backplate, enabling both wheel profile and diameter readings in a single measurement.
The wide spacing between the flange contact points provides a large reference span across the wheel, making the MiniProf Wheel 400 ideal for applications where both profile shape and diameter need to be documented simultaneously.
As with similar tools, the diameter is calculated using the commonly applied versine measuring principle, which assumes an ideal wheel shape without local deformations. This should always be considered when interpreting diameter results.
技术规格
| | |
|
|---|---|---|---|
| 产品型号 | MP-160 | MP-165 | MP-163 / MP-164 |
| 剖面精度 | 优于：± 9 µm 重复性：± 2.5 µm | 优于：± 9 µm 重复性：± 2.5 µm | 优于：± 9 µm 重复性：± 2.5 µm |
| Back-to-back accuracy | - | 200 µm | - |
| 直径精度 * | - | - | 800mm 车轮: 30 µm 1000mm 车轮: 50 µm 1200mm 车轮: 80 µm |
| 测量速度 | 小于5秒 | 小于5秒 | 小于5秒 |
| MiniProf Envision软件 - Measurement - Analysis | Supported Supported | Supported Supported | Supported Supported |
| MiniProf Criterion软件 - Measurement - Analysis
| Supported Supported for select calculations | Supported Supported for select calculations | Supported Supported for select calculations |
| 重量 | 0.7 kg | 2.0 kg | 1.4 kg |
| 工作温度 | -15˚C至+50˚C | -15˚C至+50˚C | -15˚C至+50˚C |
* 根据正矢法.
供货范围
A MiniProf Wheel system is delivered with access to the MiniProf Criterion mobile app for iOS and Android, the full Envision software package, Bluetooth® and cable connection, video tutorial guides, software support, and a customised, lightweight, and rugged transport case with room for the measuring system and accessories for safe storage and transportation.
Trade in your old MiniProf or approved laser-based instrument and unlock the latest in digital profile measurement and advanced data processing – now with an extended 10-year warranty option
Download the MiniProf BT brochure
Discover MiniProf Academy
Your option for direct interaction and professional discussion with carefully selected and specialized MiniProf Academy partners!
